Home Gym Lighting Setup Guide 2026: Best Lights for Motivation and Safety

In 2026, home gym builders are treating lighting as a performance variable — not just a utility decision. Search trends show “gym lighting color temperature” and “home gym LED setup” reaching all-time highs this year, driven by a wave of builders who finished their equipment purchases and realized their fluorescent shop lights from 2019 are actively working against them. Dimly lit gyms are safety hazards. Overly warm light tanks motivation during heavy sessions. Getting lighting right costs less than almost any equipment purchase you’ll make — and its impact on daily gym use is immediate.

This guide covers what actually matters in gym lighting (lumens, color temperature, zone coverage), the four best lighting options for different gym types, and how to plan a complete lighting setup before buying anything.

At a Glance

Product	Type	Lumens	CCT	Smart	Price
Barrina LED Shop Lights 6-Pack	T8 shop lights	5,500 LM/fixture	5000K fixed	No	$100
Feit Electric Smart WiFi Shop Light	Smart shop light	4,000 LM	3000K–5000K	Yes	$89
Govee Smart RGB LED Strip Lights	Accent strips	12W / accent	16M colors	Yes	$24
Hykolity 4-Pack Wraparound (Selectable)	Flush wraparound	5,500–7,500 LM	3000K–5000K	No	$109

How Many Lumens Does a Home Gym Need?

The professional standard for commercial gym lighting is 50 foot-candles (FC) at floor level. For a home gym, 30–50 FC is the practical target — bright enough to read barbell position and see safety marks clearly, but not commercial-grade glare.

Lumens measure total light output. Foot-candles measure light per square foot at a specific surface. To convert:

Foot-candles ≈ Total lumens ÷ Area (sq ft)

For a 20x20 ft garage gym (400 sq ft), you need approximately 12,000–20,000 lumens for adequate coverage. The Barrina 6-pack delivers 33,000 lumens total — well above that, which accounts for ceiling height loss and uneven distribution.

Space Size	Min Lumens Needed	Recommended Lumens
100 sq ft (10x10)	3,000 LM	5,000–8,000 LM
200 sq ft (10x20)	6,000 LM	10,000–15,000 LM
400 sq ft (20x20)	12,000 LM	18,000–25,000 LM
600 sq ft (20x30)	18,000 LM	25,000–35,000 LM

Rule of thumb: Slightly over-light rather than under-light. You can always dim; you can’t manufacture lumens from an underpowered fixture.

Color Temperature: The Most Overlooked Variable

Color temperature (measured in Kelvin) determines how energizing or relaxing a light feels — and it has a measurable effect on workout performance and alertness.

CCT Range	Character	Best For
2700K–3000K	Warm white (yellow-orange)	Recovery, yoga, stretching
3500K–4000K	Neutral white	General gym use, all-purpose
5000K–6500K	Daylight / cool white	Strength training, HIIT, max-effort work

For lifting-focused home gyms, 5000K is the gold standard. Research on circadian lighting consistently shows that cooler daylight temperatures promote alertness and reduce perceived effort during high-intensity work. This is why commercial gyms universally use 5000K–6500K.

For gyms used across different activities — heavy lifting in the morning, yoga or mobility in the evening — a selectable CCT fixture like the Feit Electric smart shop light is worth the premium.

The 4 Best Home Gym Lights in 2026

Barrina LED Shop Lights 6-Pack — Best Overall for Garage Gyms

The Barrina T8 V-shape shop lights are the default recommendation for garage gym lighting in 2026, and it’s not particularly close. The V-shape tube design with 270° beam angle is why: light bounces off the ceiling and adjacent walls instead of projecting straight down, which eliminates the harsh shadows you get from standard T5 fixtures. At 5,500 lumens per fixture and a 6-pack price that works out to under $17 per light, the value per lumen is unmatched.

Each fixture connects to the next with a 48” linking cable, so the entire 6-pack runs from a single outlet. Plug-in installation means a garage gym owner can have full coverage up in under an hour without touching a junction box. For garages with existing hardwire circuits, the ballast bypass option works without modification.

Coverage math: Six 4-foot fixtures mounted every 4 feet cover approximately 24 linear feet — enough for the long wall of a 20x20 garage, or two rows of 3 fixtures for full ceiling coverage. For a full 20x20 space, use two 6-packs positioned in two parallel rows.

What owners report: Strong, even coverage that eliminates shadows across the lifting platform. Installation consistently described as sub-30 minutes. The main complaint is that the 5000K daylight has no warm alternative for recovery sessions.

---

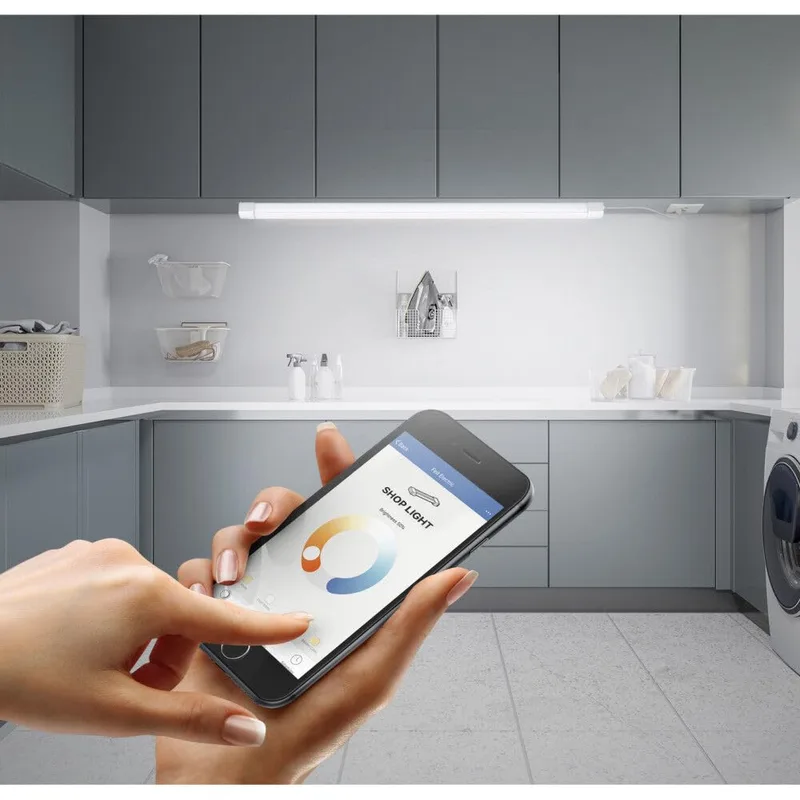

Feit Electric Smart WiFi Shop Light — Best for Smart Home Integration

The Feit Electric smart shop light earns its premium over standard fixtures through one feature: genuine CCT flexibility. You can push it to 5000K for a morning squat session and drop it to 3000K for foam rolling in the evening, all from a phone or via voice command. It also dims — something almost no non-smart shop light does — which matters for warm-up blocks, mobility work, and any workout that benefits from lower-intensity lighting.

Setup is genuinely simple: connect to your home WiFi, add to the Feit Electric app, and optionally link to Alexa or Google Home. No hub required. The scheduling feature is where this light earns its cost difference for serious home gym users — set it to turn on 10 minutes before your scheduled workout and the gym is already lit and at your preferred CCT when you walk in.

Who should buy this: Home gym owners who train across different modalities (lifting plus yoga or recovery work) and want lighting that adapts without manual adjustment. For a pure lifting gym where 5000K all the time is fine, the Barrina delivers more lumens for less money.

Coverage note: At 4,000 lumens, one fixture works as a supplement or for small gym areas. For full garage coverage, plan on 3–4 fixtures.

---

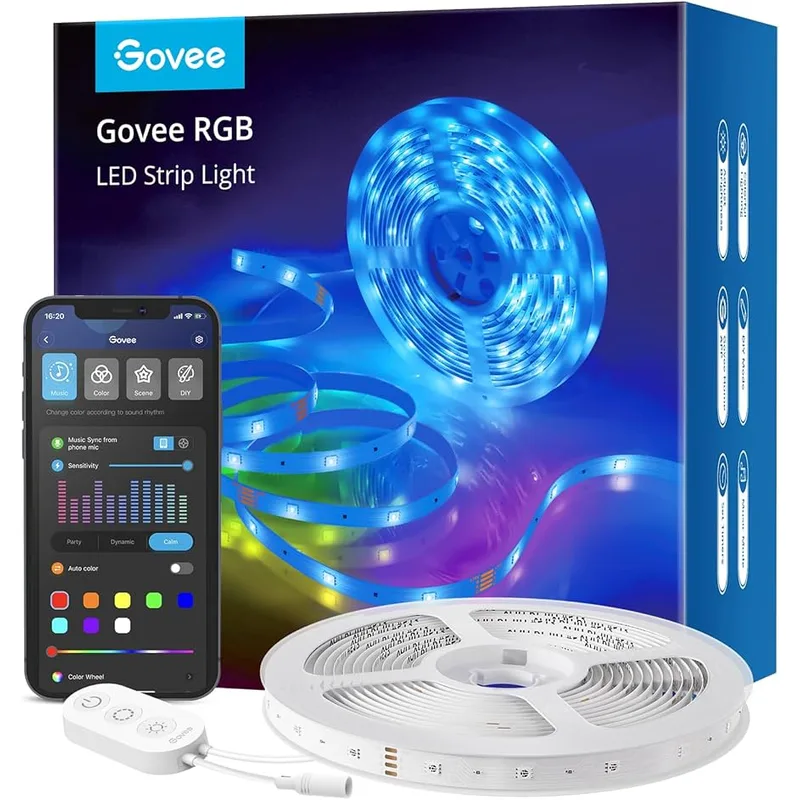

Govee Smart RGB LED Strip Lights — Best Accent Lighting

Accent lighting in a home gym is optional — but the gyms that have it get used more consistently. There is something real about walking into a lit-up space versus a cold, utilitarian one. The Govee strips handle the atmosphere layer: the ring of light around the mirror wall, the glow behind the TV monitor, or the color shift that signals the start of a workout.

With 61,000+ Amazon reviews at 4.5/5 stars, the B07N1CMGQQ has the reliability track record to justify recommending at scale. The music sync feature is genuinely useful during cardio — set a pump-up color scene and let the lights respond to your playlist. For strength sessions, a fixed color (red for high-intensity, cool blue for focus work) creates a psychological anchor that many lifters find useful for state management.

How to use them in a gym: Mount along the perimeter of the mirror wall, behind a mounted TV or monitor, or along the ceiling edge. One 16.4ft roll covers a standard 10-12ft wall. A 20x20 garage gym with full perimeter coverage needs 3–4 rolls.

What they are not: Primary lighting. At 12W, these are entirely accent. They always pair with overhead shop lights, never replace them.

---

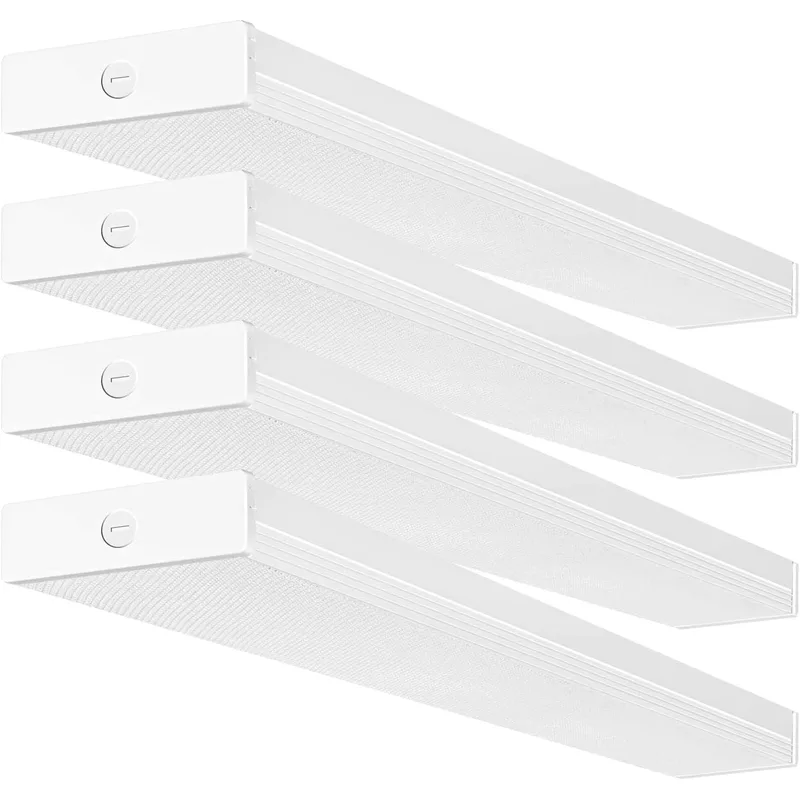

Hykolity 4FT LED Wraparound Light 4-Pack — Best for Finished Basement and Spare Room Gyms

The finished-basement home gym has different lighting requirements than a garage setup. An unfinished garage can handle exposed V-shape fixtures and dangling linking cables. A finished basement or spare bedroom gym expects aesthetics that match the rest of the house. The Hykolity wraparound’s ultra-slim profile and prismatic diffuser lens looks appropriate in a finished space — flush to the ceiling, no exposed tubes, clean and permanent.

The selectable CCT and wattage (55W/65W/75W, 3000K/4000K/5000K) are adjusted via a physical switch on the fixture body. This isn’t as convenient as app control, but it’s set-and-forget — once dialed in for your preferred training CCT, you won’t touch the switch again. At 7,500 LM on the maximum setting, one fixture throws more light than most residential overhead lights. Four fixtures in a 200 sq ft spare room gym delivers roughly 50 foot-candles at floor level — commercial gym equivalent.

Installation note: This fixture requires a hardwire connection to a ceiling junction box. If your finished basement already has ceiling-mounted fluorescent tubes, these are a direct replacement. For new installations, an electrician is needed unless you have experience with basic wiring.

Who should buy this: Home gym owners building in a finished basement, spare room, or garage with finished ceilings who want a clean, permanent installation over plug-in shop lights.

Buying Guide: Choosing the Right Lighting for Your Gym

Step 1: Identify Your Gym Type

Unfinished garage: V-shape T8 shop lights (Barrina) are the default. They install without an electrician, link easily, and deliver maximum lumens per dollar. Most garage gym builders start here.

Finished basement or spare room: Flush-mount wraparound fixtures (Hykolity) match the space aesthetics. Hardwire installation looks cleaner and doesn’t leave cords visible.

Small apartment gym or training zone: A single smart shop light (Feit Electric) plus one roll of Govee strips creates a functional and adjustable setup in 50–150 sq ft.

Step 2: Calculate Lumens Required

Use the table above. For most garage gyms, the minimum for adequate safety lighting is 12,000–15,000 lumens. Two Barrina 6-packs deliver 66,000 lumens total — that’s overkill for a 20x20 space, but LED fixtures running below their maximum efficiency last longer and produce less heat.

Step 3: Choose Your CCT Strategy

• Single-use lifting gym: Fixed 5000K. No flexibility needed.
• Multi-purpose gym (lifting + yoga + cardio): Selectable CCT is worth the cost.
• Accent-only add: Govee strips in any configuration you want.

Step 4: Plan Your Zones

Zone your lighting the same way you zone your equipment:

• Strength zone: Brightest overhead lighting, positioned to eliminate shadows on the barbell and rack safeties
• Cardio zone: Adequate overhead lighting; if you face a TV or monitor, avoid glare on the display
• Movement/mobility zone: Slightly dimmer or warmer light — this is where selectable CCT or accent strips add value
• Mirror wall: Accent lighting behind or above the mirror, combined with overhead that illuminates your face (not from behind, which creates silhouette)

Step 5: Electrical Considerations

Plug-in shop lights (Barrina, Feit Electric) run on standard 15-amp circuits. Six Barrina fixtures at 40W each = 240W total. Running 12 fixtures (two 6-packs) pulls 480W — well within a 15-amp circuit’s 1,440W capacity. You don’t need a dedicated circuit for shop lights.

Hardwired wraparound fixtures connect to existing ceiling junction boxes. If your space doesn’t have ceiling outlets, adding them requires an electrician.

FAQ

How many lumens do I need for a home gym? Plan for 30–50 foot-candles at floor level for safe gym use. For a 20x20 garage gym (400 sq ft), that translates to 12,000–20,000 lumens minimum. The Barrina 6-pack delivers 33,000 lumens, which comfortably covers a 400 sq ft space with overhead height loss factored in.

What color temperature is best for lifting? 5000K daylight white is the standard for performance lifting. It promotes alertness, makes it easier to see barbell position and rack safeties clearly, and creates the visual environment most associated with high-effort training. If you use your gym for recovery and mobility work too, a selectable CCT fixture (3000K–5000K range) is worth the premium.

Can I use LED strip lights as the only lighting in my home gym? No. LED strip lights like the Govee are accent lighting only — at 12W per 16.4ft roll, they don’t produce enough lumens to safely illuminate a training area. Use them in addition to overhead shop lights or flush-mount fixtures, never as a replacement.

Do I need an electrician to install home gym lighting? Not for plug-in shop lights. Products like the Barrina V-shape fixtures connect to a standard outlet and can be installed in under an hour with no electrical knowledge. Hardwired flush-mount fixtures (Hykolity wraparound) require access to a ceiling junction box, which requires basic wiring knowledge or a licensed electrician if you’re not comfortable.

How do I reduce glare from LED shop lights during lifting? Position fixtures so they’re not directly in your line of sight during overhead press or bench press. Mounting fixtures perpendicular to the barbell axis (rather than along it) significantly reduces glare. V-shape fixtures at lower ceiling heights can also benefit from a reflector attachment, which Barrina sells separately, to direct more light downward and reduce the sidewall scatter that creates glare.

Conclusion

The right lighting setup for a home gym depends entirely on the space type and how you use it. For most garage gyms, the Barrina LED Shop Lights 6-Pack is the clear starting point — it delivers the best lumens per dollar, installs in under an hour, and covers the common case. If you train across different modalities and want CCT flexibility, add a Feit Electric Smart Shop Light to your setup or use it as the primary fixture. For finished basement and spare room gyms, the Hykolity 4-Pack Wraparound is the appropriate choice: clean, hardwired, and calibrated for aesthetics alongside performance. The Govee LED Strips belong in every gym regardless of type — they’re a $24 investment that meaningfully changes how a gym feels to use.

For more on setting up your full gym, see our home gym layout planning guide and our complete home gym setup under $1,500.
